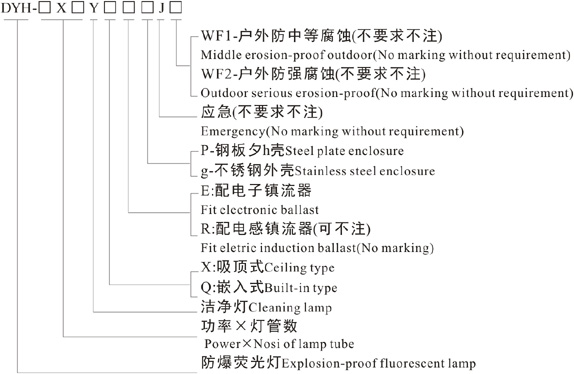

型號含義 Model implication
適用范圍 Application
1、1區、2區或20區、21區、22區危險場所；
2、ⅡA、ⅡB、ⅡC類爆炸性氣體環境或可燃性粉塵環境；
3、戶內、戶外(IP54，IP65**)。
1、Hazardous:division l&2 or zone 20、21、22;
2、Explosive gas atmosphere:class ⅡA,ⅡB,ⅡC or flammable dust atmospherers;
3、Indoor or outdoor(IP54,IP65**).
產品特點 Features
1、外殼采用優質鋼板或不銹鋼板成型，透明件為鋼化玻璃；
2、采用專利中央鎖結構，快速開蓋，更換燈管方便；
3、外殼采用密封結構，具有防水、防塵、防腐蝕等性能；
4、內裝電子鎮流器為我公司特制的防爆鎮流器，具有短路和開路保護性能，針對燈管的老化效應和漏氣現象配有預防電路，使燈具能正常工作，且高效節能COSΦ≥0.99，具有寬電壓輸入，在電壓170～250V范圍內均能保持恒功率輸出；
5、配用普通雙腳T8燈管(配電子鎮流器)或單腳燈管；
6、可根據用戶要求配裝應急裝置，當外界斷電時，自動切換到應急照明狀態；
7、鋼管或電纜布線(鋼管布線時請注明)。
1、The enclosure is moulded with steel plate or stainless steel,the transparent part is made of toughened glass;
2、Patent centre locking structure,it is quick to open the cover,and convenient to replace lamp tube;
3、Sealing structure and with perfect water,dust and serious corrosion proof functions;
4、Built-in explosion-proof electronic ballast is specially made by our company,it's with short circuit,open circuit protection functions,the standby circuit is used for avoiding the aging or blow phenomena，the high energy saving r：COSq~≥0.99. Wide voltage input,It can keep constant power output within 170～250V.
5、Fitted normal double-tin T8 lamp tube(with electronic ballast)or single-tin lamp tube;
6、It can be fitted with emergency device on request,the illumination can convert to emergency lighting state when the power is failure;
7、Wiring with cable or steel tube(Please note when wiring with steel tube).

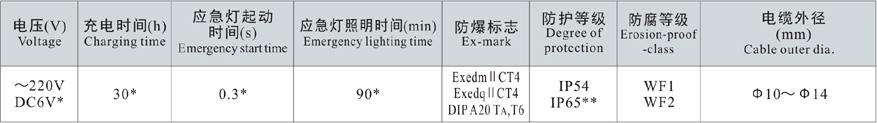

主要技術參數 Main technical parameters
*帶應急時參數Parameter with emergency
**特殊場所可達IP65。It can reah to Ip65 for the special spot.

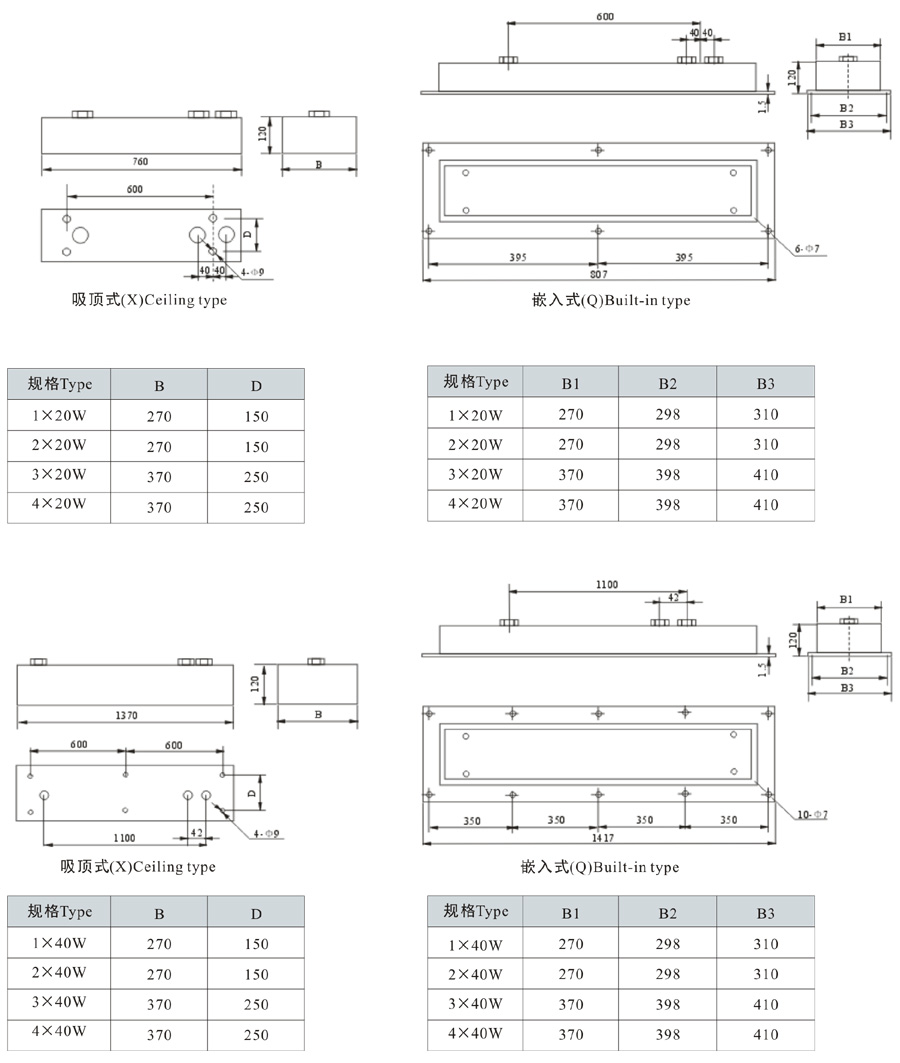

外形及安裝舉例 Outline and mounting example
