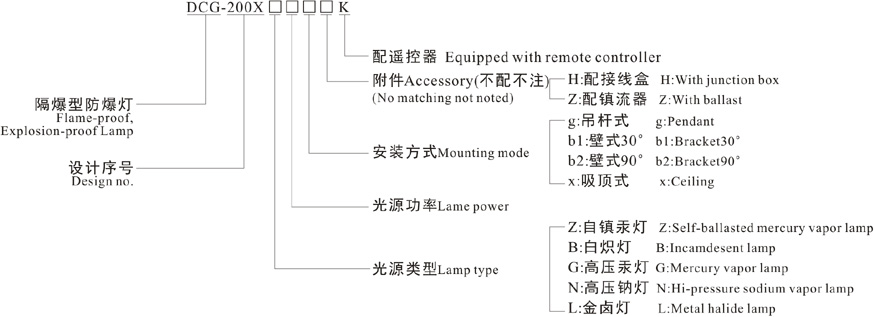

型號含義 Model implication
適用范圍 Application
1、適用于1區，2區危險場所。
2、適用于ⅡA、ⅡB類，溫度組別為T(mén)1~T4的爆炸性氣體環境。
1、Can be used in Zone1and2dangerous places.
2、Can be used in explosive gas atmospheres of Category ⅡA and ⅡB where the temperature classifications is T1~T4.
技術參數 Technical parameters
1、執行標準：GB3836.1-2000、GB3836.2-2000、IEC60079
2、防爆標志：ExdⅡBT3
3、額定電壓：AC220V/50Hz
4、防護等級：IP54
5、防腐等級：WF1
6、燈座規格：E27
7、引入口規格：G3/4"
8、電纜規格：φ9mm-φ14mm
9、配用光源及功率：(可配用光源長度≤190mm)
白熾燈：200W 自鎮汞燈：125W
高壓汞燈：125W 高壓鈉燈：110W
金鹵燈：100W
1、Implementing the standard: GB3836.1-2000, GB3836.2-2000 IEC60079
2、Explosion-proof mark: ExdⅡBT3
3、Rated voltage: AC220V/50Hz
4、Protection grade: IP54
5、Explosion-proof grade: WF1
6、Lamp specification: E27
7、Inlet spec.: G3/4"
8、Cable spec.φ9mm-φ14mm
9、Supplied with light source and power: (Length of supplied with light source ≤190mm)
Incandescent lamp: 200W Self-ballasted mercury lamp: 125W
Hi-pressure mercury lamp: 125W Hi-pressure sodium lamp: 110W
Metal halide lamp: 100W
產品特點 Features
1、殼體采用鋁合金壓鑄成型，表面高壓靜電噴塑；
2、鋼化玻璃燈罩，不銹鋼外露緊固件，防護網采用鍍鋅后表面浸塑；
3、 采用活結螺栓緊固，能快速開啟，便于安裝與維護；
4、可按用戶要求配裝燈傘；
5、鋼管布線。
1、The housing is die cast in aluminum alloy, with high voltage static plastic-sprayedsurface.
2、Lampshade of tempered glass, stainless exposed fastener. The guard net surface isdipped after galvanized.
3、Fastend with eyelet, it can be turned on quickly, installed and maintained conveniently.
4、The lampshade may be mounted at request of users.
5、Conduit wiring.

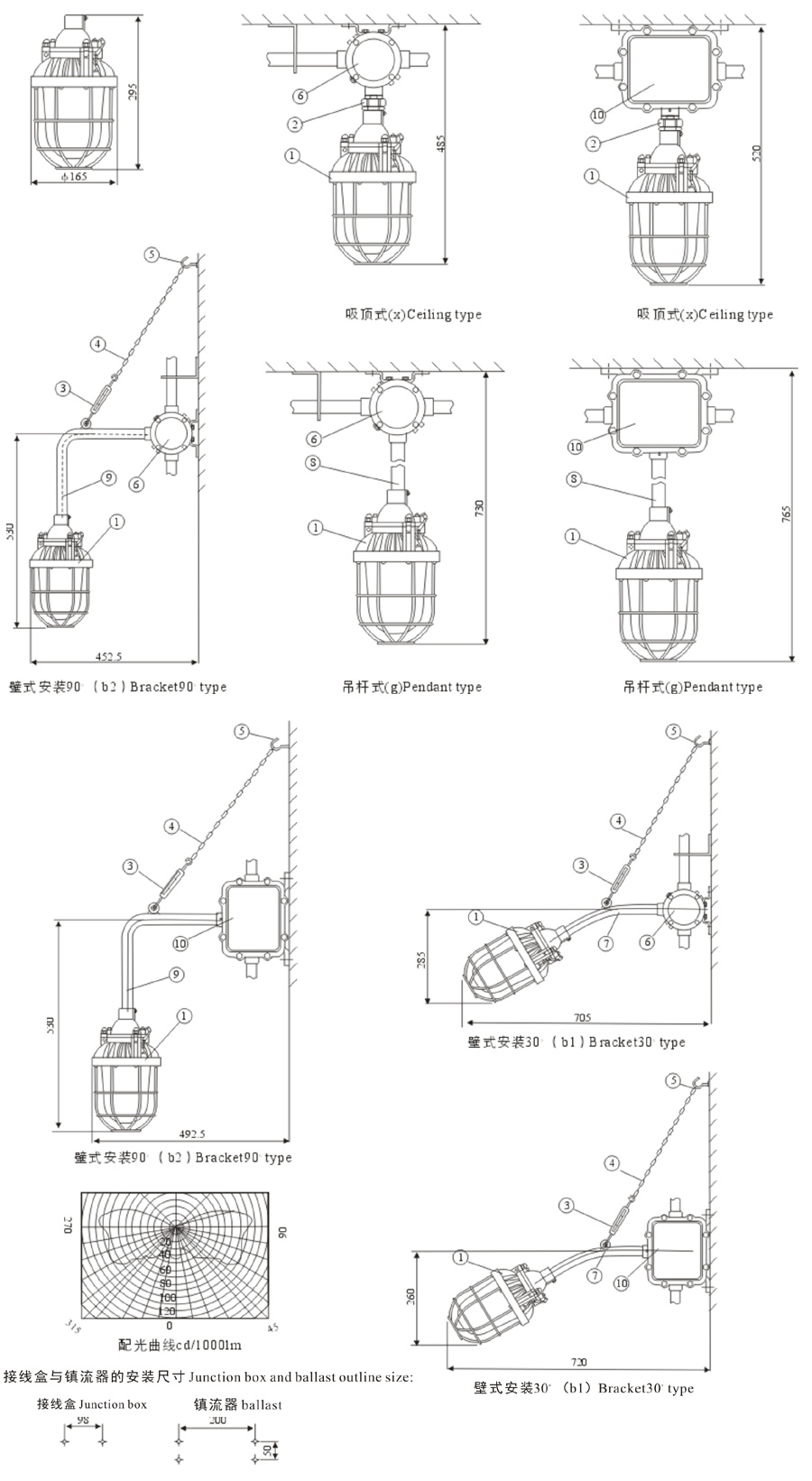

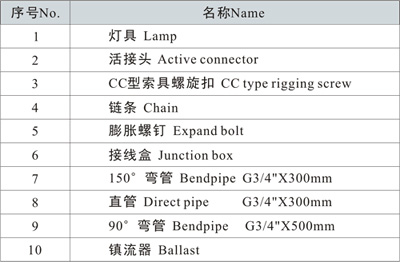

外形及安裝舉例 Outline and mounting example
訂貨須知 Ordering references
1、按產品型號說明逐條選擇，例：需配用光源為金鹵燈100W、吊桿式安裝、配接線盒、則產品型號為DCG200-L100gH；
2、本燈具出廠時不配光源，由用戶自配，建議使用亞明、飛利浦光源；
3、本燈具出廠時不配燈傘，如需要請注明。
1、Select item by item according to description of product model, if a pendant type product with halide lamp of 70W and junction box, its model shall be DCG200-L100gH.
2、As the illuminant has not been provided when the lamp leaves factory, it shall be offered by users. We recommend the illuminants of Philips or Yarning.
3、As the lampshade has not been provided when the lamp leaves factory, if requiring, please specify.
