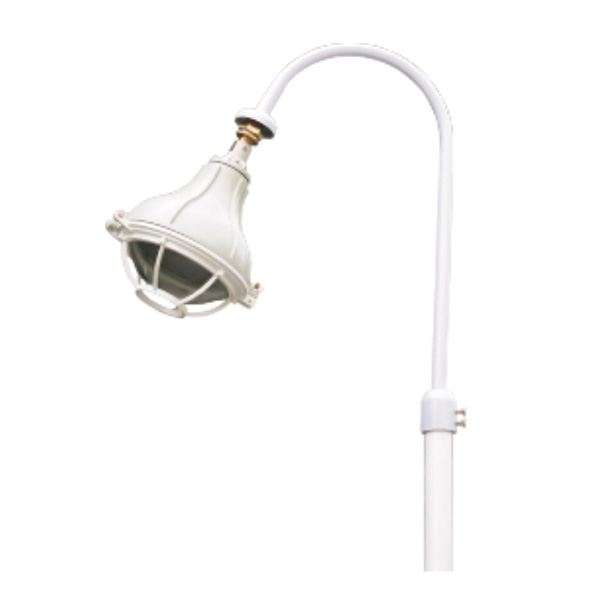

DCP 系列防爆平臺燈(ⅡB、ⅡC、e)

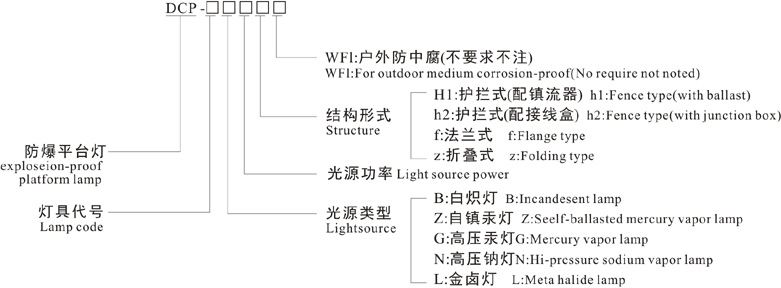

型號含義 Model implication
適用范圍 Application
適用范圍相應的配裝燈具。
Can be us in zone same as equipped lamp.
產品特點 Features
1、燈桿采用優質鋼管表面噴塑。
2、彎桿和直桿采用插接式連接．便于安裝和調整燈具的轉向，
3、01、02、05、06型可根據用戶要求配裝燈傘。
4、符合GB3836—2000，IEC60079標準要求。
1、The lamp pole is made of steel pipe with plasic-sprayed surface.
2、Bend or vertical pole is inserted to connect, with the convenience to install and rotate the direction.
3、Type 01、02、05、06can install lamp cover to user's requirement.
4、Suitable for GB3836-2000, IEC60079 standard request.

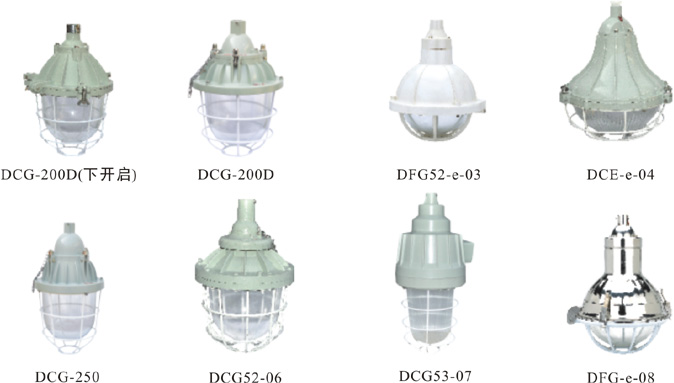

燈具代號 Lamp code
D030-04

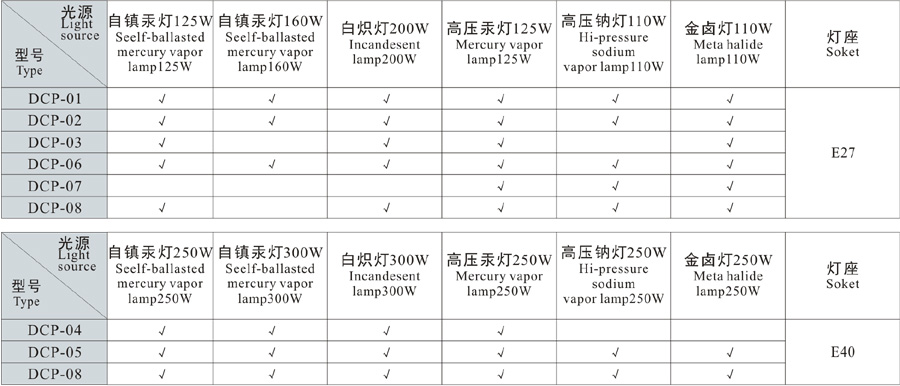

配用光源 Supplied with lamps

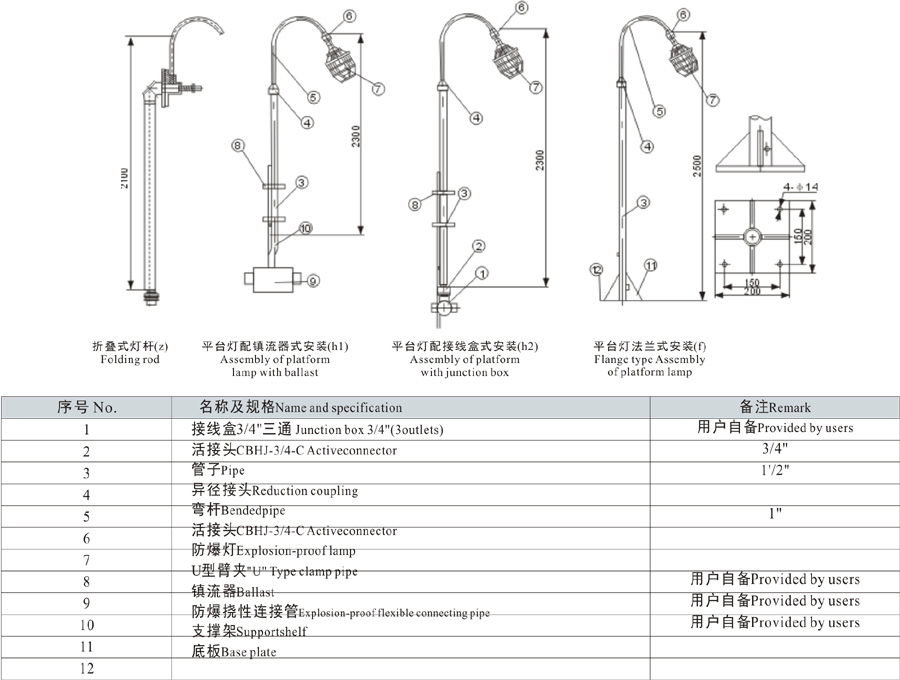

外形及安裝舉例 Outline and mounting example
